GY6.35-36LED-3W

  • SKU: GY6.35-36LED-3W
  • Bulb Type(Cap base): GY6.35
  • Lamp Power(W): 2.3W
  • Wattage equivalent: 23 W
  • Voltage(V): 12V AC/DC
  • Lumen: 210-240lm
  • Color Temperature: 3000K/6000K
  • Dimmable: Yes
  • LED Type/Amount: 2835 SMB / 36 LEDs
  • Material: Silicon
Ask Quote
General Information
AW Lamp warranty 2-Year
Certificates CE,ROHS
Energy efficiency class A++
Normal lifetime(h) >25,000 hours
Switching cycles (times) >30000 X
Market Segment Commercial indoor, Residential indoor
Technical Information
Wattage 2.3W
Replaces (Watt) 23 W
Voltage(V) 12V AC/DC
Lumen 210-240lm
Color Temperature 3000K/6000K
Dimmable Yes
Beam angle 360°
Emitting Color Warm White/Cool White
Color Rendering Index >80
Warm-up to 100% <0.5 s
Environment Temperature -20℃ ~ +45℃
Energy Consumption 2.3kwh/1000 h

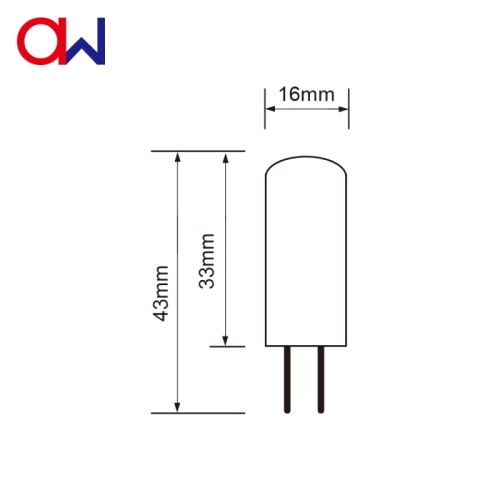

Dimensions
Height(mm) 43
Diameter(mm) 16
Weight(g) 7.7
Shape shape
Material Silicon
  • Save energy up to 88% compared with filament lamp
  • High lumen output
  • Normal lifetime of >25,000h
  • Instant start

Description GY6.35-36LED-3W | LED Bulb Replace perfect 40W halogen bulb

This LED bulb has a Capsule shape and works on 12V AC/DC volts. Changing to LED offers many advantages!

You can save up to 90% on your energy and maintenance costs due to the low energy consumption of 2.3W and the long lifetime of >25,000 hours. LED bulbs don't produce much heat or emit any UV-radiation.

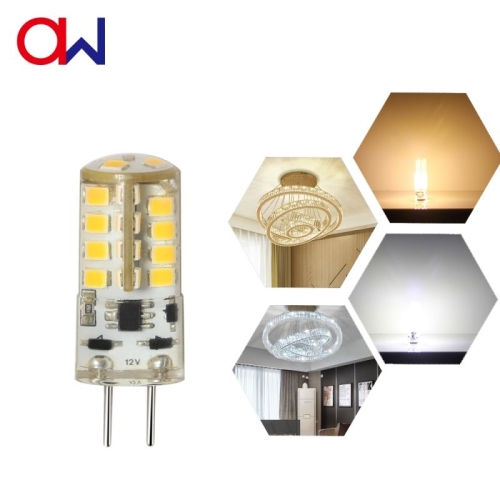

Areas of application:

- Wall fixtures, crystal lamps, mini pendant lights and decorative lights

- Shops, Hotels, Cinemas, Offices

- Ideal for desk lamps and cabinet lighting

Product benefits:

- Long lifetime of up to 25,000 h

- Huge energy saving

- Minimum maintenance cost
